Control panel
ASP116
Evolution
Adapts to all types of installations
- Up to 32 levels
- Single cable shaft
- Target adjustment
- Synthesised audio technical assistance (ATV)
- Traditional or Bus CanOpen wiring
- Vocal synthesis MP3, bips gongs integrated in cabins
- Regulation and control of machinery temperature
- Fire fighting access
- Automatic, swing doors
- Traditional level connection, Bus connection or without voice control
Advantages of CanOpen LIFT
- Greater independence for the constructor (parts replacement)
- Lower maintenance costs
- Built in diagnostic
MODERNISE YOUR ELEVATOR WITH Sprinte MATERIALS!
- Unlock technology with free access
- Spare parts ready to ship, ecommerce online 24/7
- Keeping existing motor
- Electric extrication by de-compensation or automatic action without intervention by a technician
- Recovery of contact and particular functions of the cabins
- Hand controller, motorised kit installed in place.
- Cabins in stock, express delivery 24/48/72h
- Gearless and winches economise energy
- Minimum noise, maximum efficiency
- Precise arrival
- Long life cables with plastic protection
- Increased gain power box and frame mounted tools
- Rapid modernisation 2 year guarantee
In shaft installation
Easy access, secure, reliable and simple
Cabin ASP 116 Evolution smaller and easier to install in service shafts
Inspection pit box
Cabin car top inspection box
Buzzer and flashing warning
Set-up by smartphone
Simplicity
Speed control direct from cabin

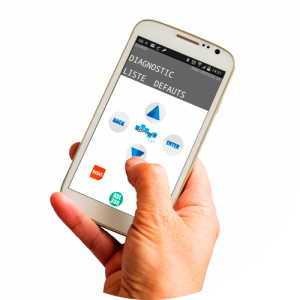

EVOPAD APP
Thanks to CanOpen lift the programming tool for ASP 116 Evolution and the VF Gerfran transfers to your Smartphone with the same application
- Speed control direct from the cabin
- Delayed acceleration of the cabin
- Accessible to all technicians
- No extra cost, no product training necessary
- The function PAD, the hotline to Sprint takes remote control of the cabin
For more information
Smart Travel function
Innovation Sprinte
Increase the performance of the ASP 116Evolution with CanOpen Lift
Absolute encoder
VF ADL 300
ASP 116 EVOLUTION
Advantages of the solution
- Journey performance increased by 10%
- Easier operations
- Simplified adjustments, speed and height
- No distance limit between levels
- Want more options! Add anticipated opening!
Without Smart Travel
With Smart Travel
Hydraulic Kit
the solution for hydraulic lifts
Renovation kit ASP 116 Evo plus central I.Valve
- In hand solution for complete control of the centre
- simplified wiring
- optimized operation
- advanced diagnosis
- Conforms to EN81-20 norm
- Workload from 225kg to 1000kg, speed 0.63 m/s
- 30% energy saving
NORMS AND GUIDELINES
All of our products and services conform to norms and regulations relative to elevators: for more information please contact our commercial service: contact@sprite.eu
- Directive 2014/33/EU
- EN81-20 and 50 electric and hydraulic elevators
- EN81-21 New elevators in existing buildings
- EN81-28 Remote alarm system
- EN81-70 Access for all personnel including disabled users
- EN81-71 Elevators damaged by vandalism
- EN81-72 Fire fighters elevators
- EN81-73 Operation of elevators in the case of a fire
- EN81-77 Elevators subject to seismic activity
- EN12015 and 16: Conform to EMC for elevators
THE ADVANTAGES OF SPRINTE CABINS
- High quality voice control
- Our service ATV technical voice assistance
- Coloured TFT displays 3.53” 4.3” or 7” standard
- Our black box function for a complete diagnostic
- Centralised updates by bus CanOpen lift as well as the controller
- User displacement >> Smart travel for performance, convenience and precision
PRINTE ARE COMMITED
- Product Training
- Commercial and technical assistance
- After sales assistance remotely or on site
- Specific product development if necessary
- Deliveries in 24/48/72hrs.
ABSOLUTE ENCODER KIT K05SP
The ASP116 Evolution has past to 1.6m/s to 2.5m/s
Our Controllers
Sprinte offer a large range of services and solutions adapted to your technical specifications
